PHP

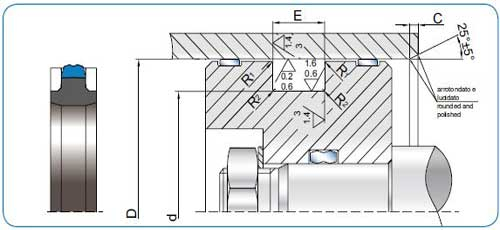

The PHP Piston seal is designed for double effect cylinders where the pressure and working conditions are heavy.


It is composed of 3 elements:



  1. - Static Part that has an energising function

  2. - Central Dynamic Part that has axial sealing function

  3. - Lateral Anitextrusion Ring that allows greater radial clearance between the piston and bore cylinder.


The seal is suitable for Earth Moving Machinery, Lifting Machines and Presses



For further details, including assembly instructions, and a full list which includes other sizes available please download our Artic Catalogue.

Stock Code Description Inside Diam External Diam Height
Gapi Code Filter by Inside/External Diam / Height
