MPM

The MPM magnetic piston, has been specifically designed for double effect pneumatic cylinders, where it is necessary to control the piston/rod stroke, by a magnetic rings, inside the piston.


The MPM magnetic piston, compared with conventional mono-bloc pistons in NBR, has another relevant advantage, thanks to the piston wear ring, which maintains the piston perfectly aligned with the bore. Moreover, the two opposed polyurethane piston seals, ensure a good sliding effect on the piston and maintain the system clean even in the presence of lubricated air.

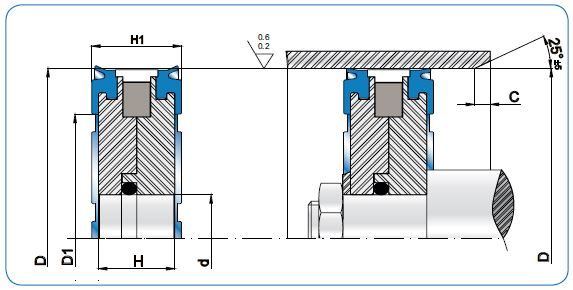

The MPM magnetic piston, is composed by the following elements:
- 2 Polyurethane seals, opposing each other
- 2 Aluminium parts, for central elements of the piston;
- 1 magnetic element in Plastoferrite;
- 1 wear ring to maintain the piston axially aligned;
- 1 NBR O-ring;


The above mentioned items could be supply assembled or each single part.


For further details, including assembly instructions, and a full list which includes other sizes available please download our Artic Catalogue.

Stock Code Description Inside Diam External Diam Height
Gapi Code Filter by Inside/External Diam / Height
